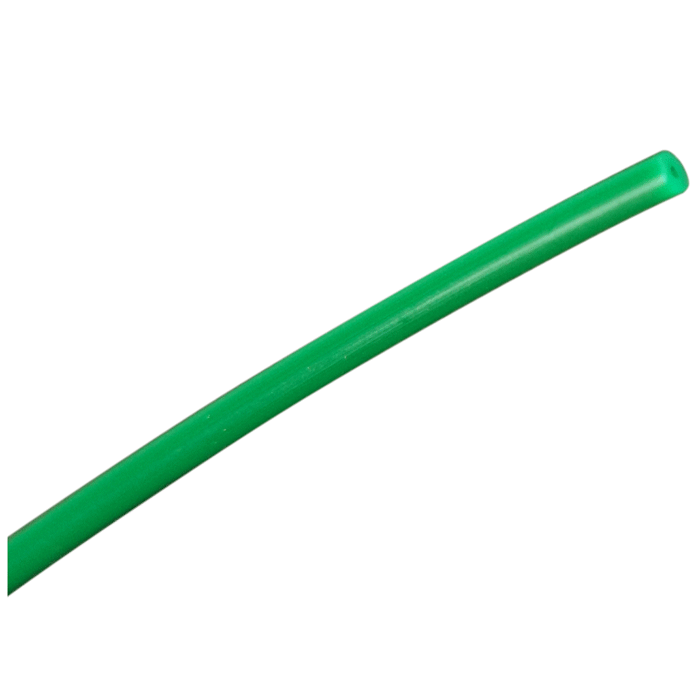

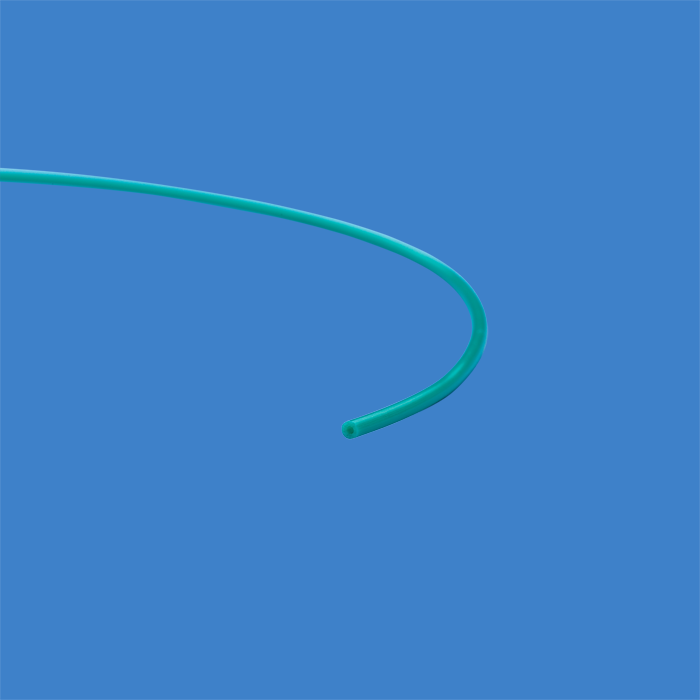

Tubing, PTFE, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, green, 1 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
47240-30-1M ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, delivering a large internal diameter for maximum flow capacity along with green pigmentation for visual line identification.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, except for trace pigment used solely for visual differentiation, ensuring low extractables and compatibility with sensitive analytical workflows.
Precision Dimensions – Maximum Flow Optimization
Inner Diameter (ID): 0.030" (0.75 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.425 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Largest ID in this series provides maximum flow capacity with minimal restriction
Green Pigmentation – Visual Line Identification
Green‑pigmented PTFE tubing
Supports:
Visual differentiation of fluid lines
Organized multi‑line system layouts
Easier maintenance and troubleshooting
✅ Used for visual identification only (no functional or standardized color coding implied)
Low‑Pressure Chromatography Performance
Designed for low‑pressure applications, including:
Pre‑pump mobile phase delivery
Post‑detector solvent waste lines
Bulk solvent transfer
Pressure Rating: 510 psi (35.1 bar)
✅ Ideal for high‑flow, low‑pressure solvent movement
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives (except trace pigment)
Chemically inert and non‑reactive
✅ Minimizes contamination risk in LC‑MS and trace‑level analytical workflows
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding and elevated‑temperature laboratory environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when working with:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative tubing when gas impermeability is required
Flexible & Durable Design
Flexible for easy routing and system integration
Durable for repeated laboratory use
Maintains clear visual differentiation in complex systems
✅ Supports efficient setup and maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Choose the appropriate length for your application:
1 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
High‑flow HPLC mobile phase delivery (pre‑pump)
Bulk solvent transfer
Solvent waste systems
Multi‑line fluid routing with visual differentiation
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump head connections
Green pigmentation is for visual identification only
Consider permeability when using degassed or oxygen‑sensitive solvents
Use proper fittings for secure, leak‑free operation
